FLA700 series

FLA740 LED

Static White

Choose a family:

FLA730 LED
L×W: 410×250 mm
FLA740 LED
L×W: 560×330 mm
Home
Products
Pole-Mounted Luminaires

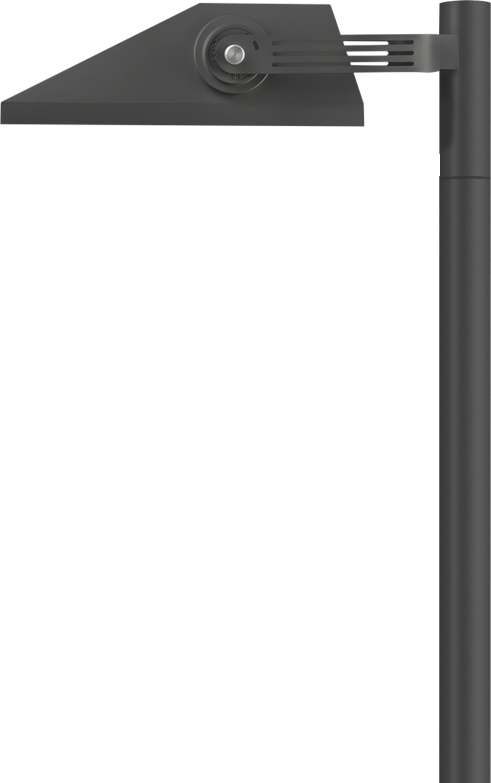

FLA740 LED
Family Spec Sheet Installation Instructions More Downloads

IP66, Class I. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone rubber gasket. Safety glass lens, hinged. Protractor scale for accurate aiming from 0° to 15° above horizontal. Integral EC electronic converter in thermally separated compartment. DALI. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. Optional 2200 K version available. To be specified at time of ordering.

FLA740 LED Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone rubber gasket
Impact ProtectionIK08
Ingress ProtectionIP66
FinishPowdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter. DALI
Power Supply220-240V / 50-60 Hz
Surge Protection6/6 kV (optional SP10)
Additional Information
LifetimeTa=25° L90B10 > 90000h
Energy efficiency classC-D (Light source)

Rated Lumen

Wattage

To
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
147-0709asymmetric, side throw beam [S65]LED-18/36W / 700 mA - 3000 K4182.980 ULD
147-0710asymmetric, side throw beam [S65]LED-18/36W / 700 mA - 4000 K4471.480 ULD
147-0721asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 3000 K5577.280 ULD
147-0722asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 4000 K5961.880 ULD
147-0711rectangular, side throw [R65]LED-18/36W / 700 mA - 3000 K3810.880 ULD
147-0712rectangular, side throw [R65]LED-18/36W / 700 mA - 4000 K4073.680 ULD
147-0723rectangular, side throw [R65]LED-24/48W / 700 mA - 3000 K5081.180 ULD
147-0724rectangular, side throw [R65]LED-24/48W / 700 mA - 4000 K5431.580 ULD
147-0713asymmetric, forward throw [A60]LED-18/36W / 700 mA - 3000 K3899.680 ULD
147-0714asymmetric, forward throw [A60]LED-18/36W / 700 mA - 4000 K4168.680 ULD
147-0726asymmetric, forward throw [A60]LED-24/48W / 700 mA - 4000 K5558.180 ULD
147-0725asymmetric, forward throw [A60]LED-24/48W / 700 mA - 3000 K5199.580 ULD
147-0697asymmetric, side throw beam [S65]LED-18/54W / 1050 mA - 3000 K6202.280 ULD
147-0698asymmetric, side throw beam [S65]LED-18/54W / 1050 mA - 4000 K6490.780 ULD
147-0680asymmetric, side throw beam [S65]LED-24/72W / 1050 mA - 4000 K8654.280 ULD
147-0679asymmetric, side throw beam [S65]LED-24/72W / 1050 mA - 3000 K8269.680 ULD
147-0699rectangular, side throw [R65]LED-18/54W / 1050 mA - 3000 K5650.580 ULD
147-0700rectangular, side throw [R65]LED-18/54W / 1050 mA - 4000 K5913.380 ULD
147-0682rectangular, side throw [R65]LED-24/72W / 1050 mA - 4000 K7884.580 ULD
147-0681rectangular, side throw [R65]LED-24/72W / 1050 mA - 3000 K753480 ULD
147-0701asymmetric, forward throw [A60]LED-18/54W / 1050 mA - 3000 K5782.280 ULD
147-0702asymmetric, forward throw [A60]LED-18/54W / 1050 mA - 4000 K6051.180 ULD
147-0683asymmetric, forward throw [A60]LED-24/72W / 1050 mA - 3000 K7709.680 ULD
147-0684asymmetric, forward throw [A60]LED-24/72W / 1050 mA - 4000 K8068.280 ULD
147-0709-70asymmetric, side throw beam [S65]LED-18/36W / 700 mA - 3000 K4759.870 ULD
147-0713-70asymmetric, forward throw [A60]LED-18/36W / 700 mA - 3000 K4437.570 ULD
147-0711-70rectangular, side throw [R65]LED-18/36W / 700 mA - 3000 K4336.570 ULD
147-0710-70asymmetric, side throw beam [S65]LED-18/36W / 700 mA - 4000 K5048.370 ULD
147-0714-70asymmetric, forward throw [A60]LED-18/36W / 700 mA - 4000 K4706.470 ULD
147-0712-70rectangular, side throw [R65]LED-18/36W / 700 mA - 4000 K4599.370 ULD
147-0697-70asymmetric, side throw beam [S65]LED-18/54W / 1050 mA - 3000 K7067.670 ULD
147-0701-70asymmetric, forward throw [A60]LED-18/54W / 1050 mA - 3000 K658970 ULD
147-0699-70rectangular, side throw [R65]LED-18/54W / 1050 mA - 3000 K643970 ULD
147-0698-70asymmetric, side throw beam [S65]LED-18/54W / 1050 mA - 4000 K7356.170 ULD
147-0702-70asymmetric, forward throw [A60]LED-18/54W / 1050 mA - 4000 K6857.970 ULD
147-0700-70rectangular, side throw [R65]LED-18/54W / 1050 mA - 4000 K6701.870 ULD
147-0721-70asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 3000 K6346.470 ULD
147-0725-70asymmetric, forward throw [A60]LED-24/48W / 700 mA - 3000 K5916.770 ULD
147-0723-70rectangular, side throw [R65]LED-24/48W / 700 mA - 3000 K5781.970 ULD
147-0722-70asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 4000 K6731.170 ULD
147-0726-70asymmetric, forward throw [A60]LED-24/48W / 700 mA - 4000 K6275.270 ULD
147-0724-70rectangular, side throw [R65]LED-24/48W / 700 mA - 4000 K6132.470 ULD
147-0679-70asymmetric, side throw beam [S65]LED-24/72W / 1050 mA - 3000 K9423.570 ULD
147-0683-70asymmetric, forward throw [A60]LED-24/72W / 1050 mA - 3000 K8785.370 ULD
147-0681-70rectangular, side throw [R65]LED-24/72W / 1050 mA - 3000 K8585.370 ULD
147-0680-70asymmetric, side throw beam [S65]LED-24/72W / 1050 mA - 4000 K9808.170 ULD
147-0684-70asymmetric, forward throw [A60]LED-24/72W / 1050 mA - 4000 K9143.970 ULD
147-0682-70rectangular, side throw [R65]LED-24/72W / 1050 mA - 4000 K8935.770 ULD
Showing 1 to 48 of 48 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
147-0543TS1-2/M12 Pole clamp, single (Ø 76-89)
147-0545TS2-2/M12 Pole clamp, double (Ø 76-89)
147-0546TS2-2/M12 Pole clamp, double (Ø 114-133)
147-0526TS1-2/M12 Pole clamp, single (Ø 102-114)
147-0544TS1-2/M12 Pole clamp, single (Ø 114-133)
147-0527TS2-2/M12 Pole clamp, double (Ø 102-114)
