ZFT400 series

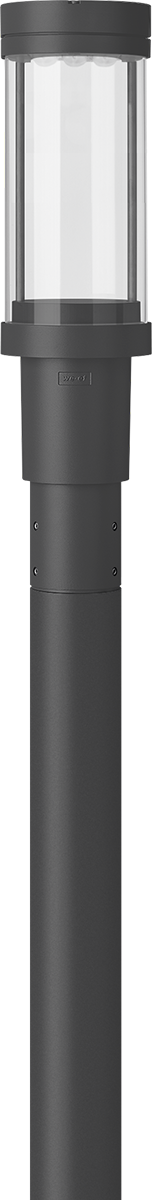

ZFT430 LED
Choose a family:
ZFT430 LED
Diameter ⌀: 170 mmH: 388 mm
ZFT430-FT LED
Diameter ⌀: 170 mmH: 388 mm
ZFT440 LED
Diameter ⌀: 170 mmH: 448 mm
ZFT440-FT LED
Diameter ⌀: 170 mmH: 448 mm
ZFT460 LED
Diameter ⌀: 250 mmH: 388 mm
ZFT460-FT LED
Diameter ⌀: 250 mmH: 388 mm
ZFT470 LED
Diameter ⌀: 250 mmH: 448 mm
ZFT470-FT LED
Diameter ⌀: 250 mmH: 448 mm
IP66, Class I. Class II on request. IK09. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. PMMA main lens. Integral EC electronic converter in thermally separated compartment. DALI. CAD-optimised OLC® One LED Concept optics for superior illumination and glare control. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Optional 2200 K version available. To be specified at time of ordering. Version with emergency lighting on request.
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9016 Traffic white
RAL7016 Anthracite grey
RAL9007 Grey aluminium
Material
| Body | Marine-grade, die-cast aluminium alloy |
| Lens | PMMA |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware |
| Gasket | Silicone CCG® Controlled Compression Gasket |
| Impact Protection | IK09 |
| Ingress Protection | IP66 |
| Finish | Powdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 or RAL9016 |
| Corrosion Protection | 5CE |
Electrical
| Ballast / Driver | Integral EC electronic converter. DALI |
| Power Supply | 220-240V / 50-60 Hz |
| Surge Protection | 6/6 kV (optional SP10) |
